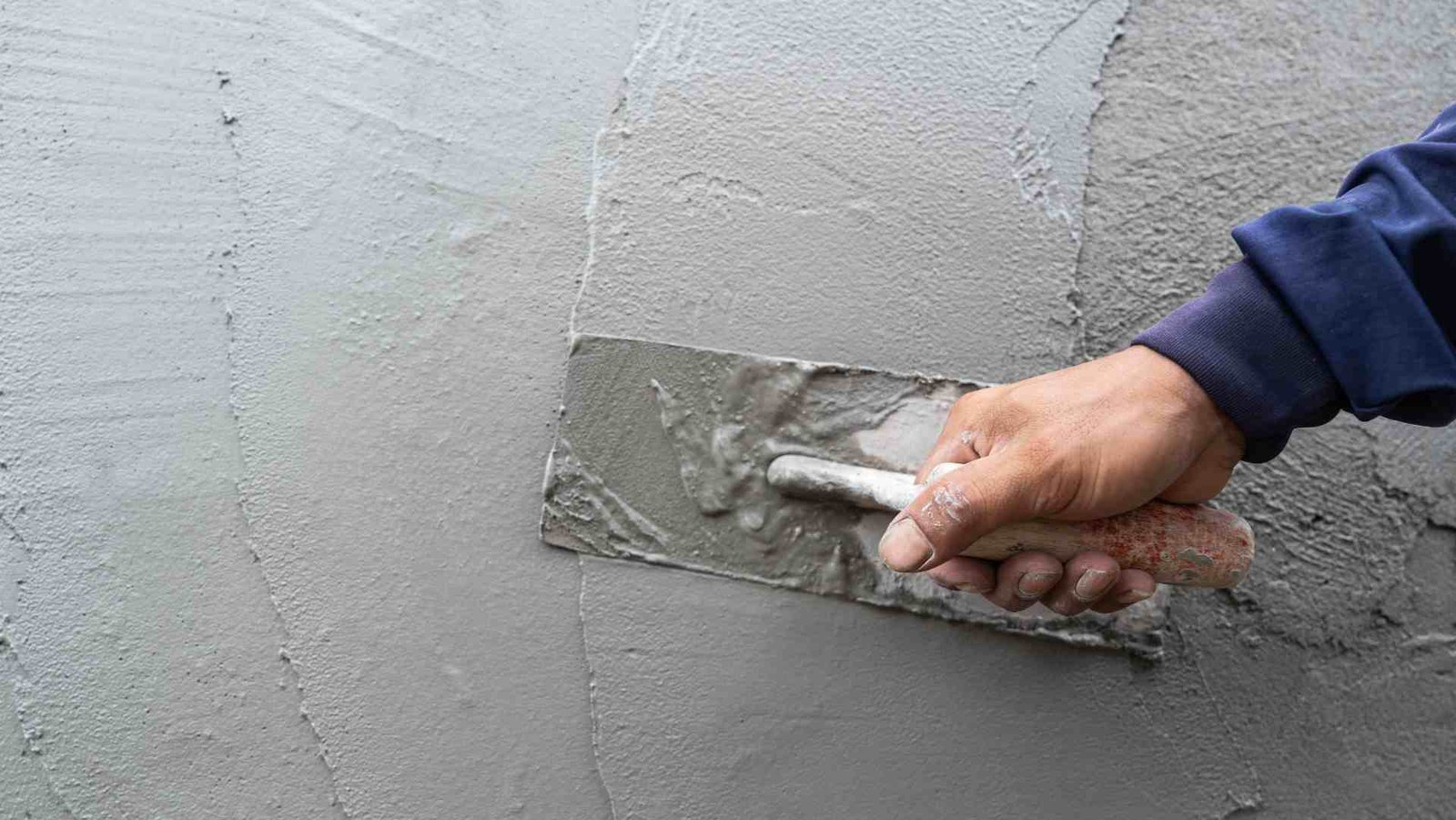

Waterproof mortar application on building surface for moisture resistance and protection
Solutions / Waterproof Mortars

Waterproof Mortar
Solutions

Performance-driven additive solutions for waterproof mortars that require lower water absorption, stronger adhesion, dense structure, reliable workability, and long-term resistance to moisture-related damage. MikaZone's waterproof mortar guide specifically identifies HPMC, RDP, and PCE as key additives for high-performance waterproofing systems.

Why This Solution
Waterproof Mortar System Coverage
Suitable for cement-based waterproof mortars and polymer-modified waterproofing systems.
Cellulose Ether, Polymer & Functional Core
Built around cellulose ether, polymer modifiers, water reducers, and selected functional additives for balanced fresh-state and hardened-state performance.
Local Support in Venezuela
Local recommendation, supply coordination, and technical support available in Venezuela.
Water Absorption Control
Moisture Resistance
Dense Structure
Strong Adhesion
Polymer-Modified
Explore
Section 01 — Foundation

Built for Dense Structure, Low Water Absorption,
and Long-Term Durability

A good waterproof mortar must do more than resist liquid water on the surface. It must form a dense cementitious matrix, minimize capillary pathways, maintain strong adhesion to the substrate, remain workable during application, and harden into a durable barrier that resists moisture ingress over time.

In practical formulation work, waterproof performance is usually not achieved by one additive alone. A reliable waterproof mortar system often combines:

  • A cellulose ether for water retention and workability
  • An RDP for film formation, adhesion, and flexibility
  • A PCE for reduced water demand and denser structure
  • Optional additives — silicone hydrophobic powder, defoamer, PP fiber, or Calcium Formate depending on target and environment
Waterproof mortar application on construction wall Dense Matrix · Low Porosity
Section 02 — Performance Targets

What a Waterproof Mortar Formula
Must Deliver

High-performance waterproof mortars must satisfy multiple simultaneous demands — from moisture resistance and workability to adhesion, density, and crack control. Here is the full performance picture.

Low Water Absorption & Reduced Permeability
High-performance waterproof mortars rely on a denser, less porous microstructure and polymer-assisted water resistance to reduce water penetration.
Strong Workability & Smooth Application
HPMC is critical for workability and water retention, ensuring the mortar remains usable while hydration proceeds properly.
Better Adhesion to the Substrate
RDP improves adhesion and helps form a more continuous protective film inside the system, especially on concrete or masonry surfaces exposed to moisture.
Dense, Compact Cement Matrix
PCE reduces the water-cement ratio while preserving workability — delivering higher density and reduced porosity in waterproof mortar formulations.
Long-Term Flexibility & Crack Resistance
RDP ties polymer powder directly to flexibility, crack resistance, and longer service life. PP fiber can also be added to improve crack control and dimensional stability.
Controlled Air Content & Better Finish
Defoamer controls trapped air that creates weak points and porosity — relevant wherever density and compactness matter in waterproof mortar.
Faster Set or Early Strength When Needed
Calcium Formate acts as a set modifier for rapid strength gain and cold-weather setting — relevant in fast-track waterproof mortar applications.
Construction worker applying cement mortar on concrete wall
Performance in Practice
Seven targets. One balanced formulation system.
Section 03 — Product Package

Additives We Recommend for
Waterproof Mortar Formulations

Eight additive families — each with a distinct role in building a complete waterproofing system. Here is the full recommended package.

HPMC cellulose ether mortar workability HPMC — Water Retention
Additive 01

HPMC — Core Water-Retention and Workability Additive

HPMC is one of the core additives in waterproof mortars because it helps maintain water retention, workability, and application consistency. It supports proper cement hydration and stable surface formation.

  • Water retention & stable consistency
  • Smooth spreading during application
  • Better hydration support
  • General waterproof mortar workability
MK20PMK40P MK75PMK100P MK150PMK200P
HEMC cellulose ether cement mortar rheology HEMC — Balanced Rheology
Additive 02

HEMC — Alternative / Complementary Cellulose Ether

HEMC can be used in waterproof mortars where balanced rheology, stable water retention, and smooth application are needed. A practical alternative or complementary option depending on formula structure.

  • Cement-based waterproof mortars
  • Balanced rheology & smooth mortar feel
  • Stable water retention
MK75EMK100E MK150EMK200E
RDP polymer modified mortar adhesion waterproofing RDP — Film Formation
Additive 03

RDP — Adhesion, Flexibility, and Waterproofing Film Support

RDP forms a continuous polymer film, improves substrate adhesion, enhances flexibility, and reduces water permeability. One of the most important upgrade additives in waterproof mortars.

  • Better waterproof film formation
  • Stronger substrate adhesion
  • Improved flexibility & crack resistance
  • Long-term waterproof durability
MK8028HMK8025H MK8022HMK3520N MK3530NMK1620N
Additive 04
PCE — Lower Water Demand & Denser Structure
Lower water demand leads directly to denser structure and lower porosity — linking PCE to better density, strength, and durability.
Reduced W/C Denser Matrix Lower Porosity
Related Products PCE 201 · PCE 202 · PCE 203 · PCE 204
Additive 05
Silicone Hydrophobic Powder — Water-Repellent Upgrade
Reduces capillary absorption and supports long-term durability in exterior moisture exposure and wet-service environments.
Hydrophobic Exterior Capillary Control
Related Products Silicone Hydrophobic Powder
Additive 06
Defoamer Powder — Compactness & Void Reduction
Controls trapped air that creates porosity and weak spots — especially relevant because porosity directly hurts water resistance.
Air Control Better Density Fewer Voids
Related Products DE401
Additive 07
Calcium Formate — Early Strength & Fast Set Support
Accelerates waterproof mortar systems in schedule-sensitive or low-temperature environments for faster return to next construction step.
Fast Track Cold Weather Early Strength
Related Products Calcium Formate / CaFo
Additive 08
PP Fiber — Crack Control & Dimensional Stability Support
Cracks are one of the main paths for moisture penetration. PP Fiber provides anti-crack reinforcement and shrinkage control in crack-resistant waterproof mortar systems and exterior waterproof render.
Crack Resistant Shrinkage Control Exterior Render Dimensional Stability
Related Products PP Fiber · PP Monofilament Fiber
Section 04 — Architecture

Recommended Additive Package by
Waterproof Mortar Category

Four distinct waterproof mortar types — each with a tailored additive architecture built around its specific performance target.

Standard Cement-Based Waterproof Mortar
HPMC Core
RDP Core
PCE Core
Defoamer Optional
Water-Repellent Waterproof Mortar
HPMC or HEMC Core
RDP Core
PCE Core
Silicone Hydrophobic Powder Key Upgrade
Defoamer Optional
Crack-Resistant Waterproof Mortar
HPMC or HEMC Core
RDP Core
PCE Core
PP Fiber Key Upgrade
Silicone Hydrophobic Powder Optional
Fast-Set / Early-Strength Waterproof Mortar
HPMC or HEMC Core
RDP Core
PCE Core
Calcium Formate Key Upgrade
Defoamer Optional
Section 05 — Reference

Public Reference Guidance
from MikaZone

These reference points are drawn from MikaZone's publicly indexed content on waterproof mortar, dry-mix mortar, RDP, PCE, and polymer-modified mortar systems.

01
Core waterproof mortar package: HPMC + RDP + PCE are explicitly identified as the essential additive families for high-performance waterproofing.
02
Water-repellent upgrade: silicone hydrophobic powder is publicly positioned as the hydrophobic additive in dry-mix mortar systems.
03
Anti-crack direction: PP fibers are publicly listed as anti-crack agents in dry-mix mortar formulations.
04
Fast-set direction: Calcium Formate is publicly positioned as a set modifier for rapid strength gain and cold-weather setting.
Important Note
The indexed public pages do not expose one complete unified dosage table for every waterproof-mortar additive. Final dosage should be confirmed through raw-material review, binder choice, waterproofing target, and formulation trials.
Concrete wall surface dense structure waterproofing MikaZone Reference
Waterproof mortar formulation selection process Selection Logic
Section 06 — Selection Logic

Selection Logic for
Waterproof Mortar Formulations

At Mandalas, we recommend waterproof-mortar additives based on waterproofing level required, binder and filler structure, application method, and trial feedback.

1
Define the mortar type
Standard cementitious, hydrophobic, crack-resistant, or fast-set waterproof mortar.
2
Select the core cellulose ether system
Choose HPMC or HEMC based on binder type, viscosity requirement, and application consistency target.
3
Add RDP and PCE for the main waterproofing structure
RDP provides film formation, adhesion, and flexibility. PCE reduces water demand and increases matrix density.
4
Add performance-specific upgrade additives
Hydrophobic powder, PP fiber, Calcium Formate, or defoamer — selected according to the specific performance gap.
5
Validate through lab and plant trials
Confirm dosage, workability, and waterproof performance through systematic trial feedback before scale-up.
Section 07 — Why Mandalas

Why Choose Mandalas for
Waterproof Mortar Formulation Support

We do not treat waterproof mortar as a one-additive product. We help build a full waterproofing additive package around the actual moisture-resistance, workability, density, and durability target of your system.

Construction team applying waterproof mortar on building facade Full System Support
What We Help With
  • Standard waterproof mortars
  • Water-repellent waterproof mortars
  • Crack-resistant waterproof mortars
  • Fast-set / early-strength waterproof systems
  • Surface-density and bubble-control optimization
  • Trial support and formula adjustment
What We Supply for Waterproof Mortar Applications
  • HPMC
  • HEMC
  • RDP
  • PCE
  • Silicone Hydrophobic Powder
  • Defoamer
  • Calcium Formate
  • PP Fiber
8
Additive Families
4
Mortar System Types
3
Core Additive Package
1
Integrated System View
Waterproof mortar FAQ construction reference
Section 08 — FAQ

Waterproof Mortar FAQ

Q1 What are the most important additives in waterproof mortar?
MikaZone's dedicated waterproof mortar guide explicitly identifies HPMC, RDP, and PCE as the core additive families for high-performance waterproofing systems. Each plays a distinct role — HPMC for workability and water retention, RDP for film formation and adhesion, and PCE for reduced water demand and denser matrix structure.
Q2 Why is PCE important in waterproof mortar?
Because lowering water demand helps create a denser and less porous mortar. MikaZone's waterproofing and PCE content links PCE directly with stronger density, lower porosity, and improved durability — making it one of the most efficient tools for improving waterproof performance at the matrix level.
Q3 Is hydrophobic powder necessary in every waterproof mortar?
Not always. Silicone Hydrophobic Powder is more relevant when stronger water repellency and exterior wet-service durability are required. MikaZone's dry-mix mortar direction supports it as a water-repellent upgrade additive — most valuable in exterior-facing or high-moisture-exposure applications.
Q4 Can waterproof mortars also need crack-control additives?
Yes. Cracks are pathways for moisture ingress, so PP Fiber can be relevant in crack-resistant waterproof mortar systems. MikaZone's dry-mix mortar page supports PP fibers as anti-crack agents — particularly important in exterior waterproof render or shrinkage-sensitive applications.
Q5 Can you recommend dosage ranges?
Yes. We can suggest a practical starting range based on your waterproofing target, binder system, and application method. Contact our technical team with your formula structure and performance requirements, and we will provide a tailored starting dosage direction for each additive in your system.
Section 09 — Get Started

Need the right additive package
for your waterproof mortar?

Tell us whether you are developing a standard, hydrophobic, crack-resistant, or fast-set waterproof mortar. We'll recommend the right product combination and starting selection logic to help you begin trials faster and reach stable results sooner.

We Cover All Mortar Types
Standard Waterproof Mortar
HPMC + RDP + PCE
Water-Repellent Mortar
+ Silicone Hydrophobic Powder
Crack-Resistant Mortar
+ PP Fiber
Fast-Set / Early-Strength
+ Calcium Formate
Final dosage confirmed through binder review, waterproofing target, and formulation trials.
